Model No.︰P150WFC-24
Brand Name︰SUNWU
Country of Origin︰Taiwan, China
Share on:

 Total 31 Related Items
Prev12345Next

Product Description

Power supply P-type power supply
Model P150WFC
Input operating frequency 50Hz / 60Hz
Operating voltage 90~264VAC
Operating current 3.2A / 110VAC
1.6A / 220VAC 3.15A / 110VAC
1.5A / 220VAC
Leakage current <0.75 mA
Efficiency > 72%
Power input instantaneous current <50A
Output voltage 12 24
Current 12.5 6.5
Voltage adjustable range
±10% of rated output voltage

Display voltage output display / A button: current output display / W button: watt output display
Chopping rate < 2% of rated output voltage
Start time <1000 milliseconds
Protection design overvoltage + overcurrent
Accuracy input error is less than 0.5% of rated output voltage
Load error less than 1.5% of rated output voltage
Temperature error <0.1% of rated output voltage
Between high voltage input and output: 60Hz 1.0KVAC-1min
Between input and ground: 60Hz 1.0KVAC-1min
Between output and ground: 60Hz 1.0KVAC-1min
Insulation
Between 50MΩ/500VDC input and output

Operating environment 0.C~ + 60.C; 20%~90RH
Storage temperature -25.C~+ 65.C
Auxiliary fan V
Weight 550 grams
Size 145x75x95

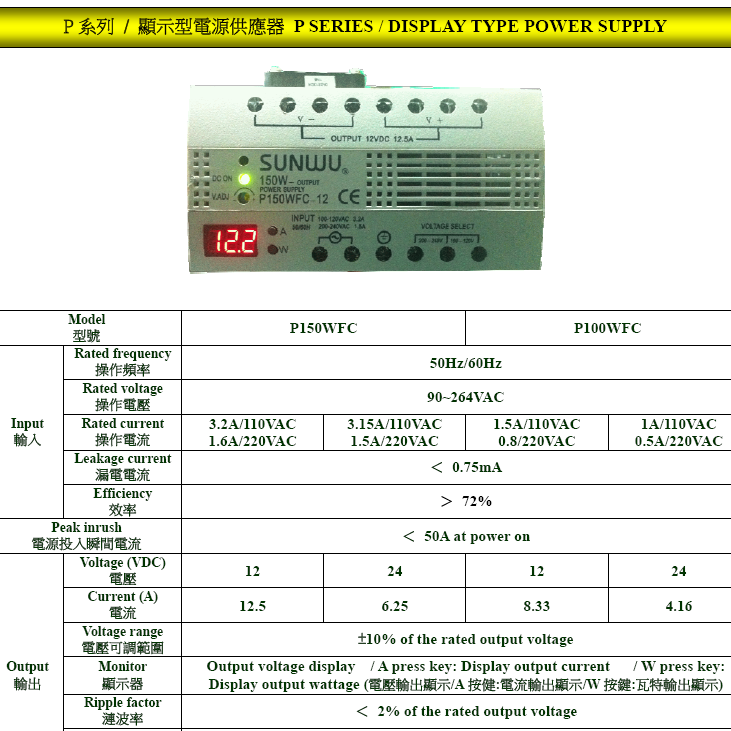

Product Image
